Product details



Cummins Marine Engine K19 Series KTA19-M3

Model NO.:KTA19-M3

Fuel:Diesel Engine

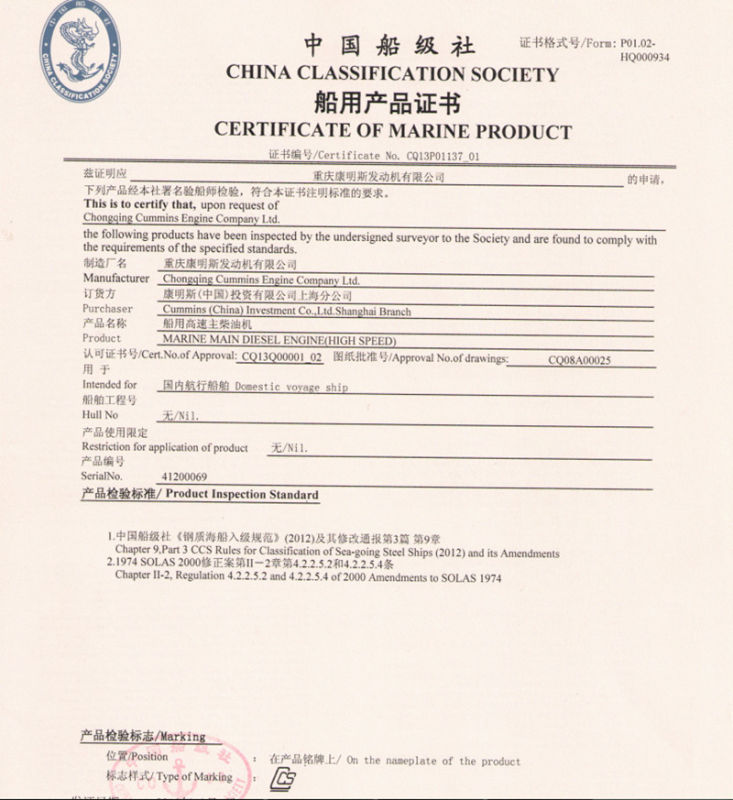

All Engine with BV / CCS /IMO2


Product Description

Engine Model: K 19 Series
Displacement(L): 19
Type: Four-Cycle, In-line Six-cylinder
Cylinder Size X Cycle: 159mm X 159mm
Advereised Power/Speed(kw/rpm): 450-890 HP
Peak Toque/Speed(Nm/rpm): Max 2856
Air Handing: Turbo Charged CAC
Emission: Euro III
Weight(kg): 1858
Engine Model S/O No.   Advertised Power     kw/RPM Max Power      kw/RPM reserve Power      kw/RPM Application Certification
KTA19-M SO40001   351/1800

Main Propulsion CCS/IMO
KTA19-M SO40002 373/1800

Main Propulsion CCS/IMO
KTA19-D(M) SO40008 336/1500

Marine Auxiliaries CCS/IMO
KT19-M SO40021 317/1800

Main Propulsion CCS/IMO
KTA19-M3 SO40028 447/1800

Main Propulsion CCS/IMO
KTA19-M3 SO40036 410/2100

Main Propulsion CCS/IMO
KTA19-D(M) SO40038 448/1500

Marine Auxiliaries CCS/IMO
KTA19-M3 SO40044 477/1800

Main Propulsion CCS/IMO
KTA19-M4 SO40077 522/2100

Main Propulsion CCS/IMO
KTA19-D(M) SO40163 448/1500

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40168 392/1800

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40185 336/1500

Marine Auxiliaries CCS/IMO
KTA19-M3 SO40197 351/1800

Main Propulsion CCS/IMO
KTA19-M3 SO40200 434/1744 477/1800
Main Propulsion CCAS
KTA19-M3 SO40201 407/1744 447/1800
Main Propulsion CCAS
KTA19-M SO40203 339/1744 373/1800
Main Propulsion CCAS
KTA19-M SO40204 318/1744 351/1800
Main Propulsion CCAS
KT19-M SO40213 288/1744 317/1800
Main Propulsion CCAS
KTA19-D(M) SO40249 403/1500

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40257 463/1800

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40259 336/1500

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40260 403/1500

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40261 448/1500

Marine Auxiliaries CCS/IMO
KTA19-D(M) SO40274 507/1800

Marine Auxiliaries CCS/IMO
KT19-M SO40301 317/1800

Main Propulsion CCS/IMO
KT19-M SO40302 288/1744 317/1800
Main Propulsion CCAS
KTA19-M SO40303 373/1800

Main Propulsion CCS/IMO
KTA19-M SO40304 339/1744 373/1800
Main Propulsion CCAS
KTA19-M3 SO40305 407/1744 447/1800
Main Propulsion CCAS
KT19-M SO40336 373/1800

Main Propulsion CCS/IMO
KTA19-D(M) SO40350 392/1800

Marine Auxiliaries BV
KTA19-D(M) SO40351 336/1500

Marine Auxiliaries BV
